Ambient Air Monitoring Systems

Real-time Multi-Parameter Ambient Air Quality Monitoring

Eagle Environmental is committed to fulfilling all your air quality monitoring obligations.  Our experience in applied engineering and scientific expertise allows us to innovate and advance ambient air monitoring technology to better serve our clients’ changing needs

Real-time and historical data gathering of the parameters that affect your bottom line.

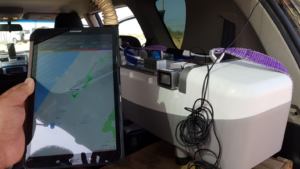

DV3000 Mapping

  • Real-time parameter mapping
  • Unit transported via ordinary vehicle
  • Data transmitted via Bluetooth
  • Real-time, portable detection analyzer offering lower ppb accuracy
  • Real-time true wind direction and speed while mobile with Magellan Weather Station
  • 33″ x 11″ x 11″
  • 37.5 lbs without battery
  • 55.1 lbs with battery
  • GPS for real-time tracking of mobile gas analyzer unit and mapping via Bluetooth
  • Measures NH3, NO, BEN, TOL, ETB, O3, XYM, XYO, XYP, STY, FOR, SO2, 1,3-butadiene
  • Temperature, humidity, and pressure are monitored through continuous streaming
  • 0-1000 ppb: NO2
  • 0-500 ppb: O3, NO, EtB, XYM, XYO
  • 0-250 ppb: BEN, SO2, NH3, TOL, XYP
  • High performance Lithium battery pack options
    • 24 VDC at 4A maximum
    • Input voltage range 24V to 26V DC
    • 96W maximum

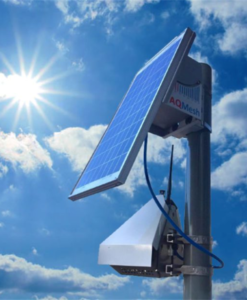

AQ Mesh QA/QC Testing

  • Tested in a variety of environments
  • Compared with official state reference monitors
  • A portable (4-6 lbs.) small multi-sensor (5/8″ x 1-1/4″) ambient air quality monitor
  • Simple mounting assembly
  • Real-time data via web-based platform
  • Measures EPA criteria air pollutant gases NO2, O3, CO, SO2, CO2, H2S, NO, AND NOX
  • Ethylene oxide prototype
  • Measures particulates PM1, PM2.5, PM10 and TPC
  • Measures relative humidity and atmospheric pressure
  • Measures noise an other parameters
  • Optional Meteorological Station
  • AC/DC, lithium battery, or solar panel
